BC stands for Ballistic Coefficient. BC is a measure of external ballistic performance for bullets. The higher a bullets BC is, the less drop, and wind deflection it will have at all ranges for a given muzzle velocity and environment.

BC is a number that can be used as an input for ballistic solvers to predict trajectories. BC is also used as a selling point for long range bullets so due to this marketing use, sometimes BC’s are inflated or skewed by manufacturers to sell more bullets. As a long range shooter who cares about hitting targets, it’s important to understand the basics of BC so you’re not mislead by marketing hype.

BC’s can be referenced to different standards. The two most common standards in use are:

  • G1 for old, flat based blunt nosed bullets
  • G7 for more modern spitzer nosed, boat tailed bullets
G1 vs G7 BC

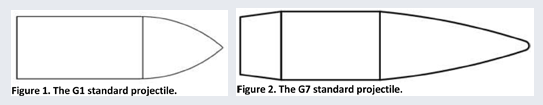

Figure 1. G1 (left) vs. G7 (right) standard drag models. G7 is much closer to modern long range bullets.

G1 BC Variation vs G7 BC Variation

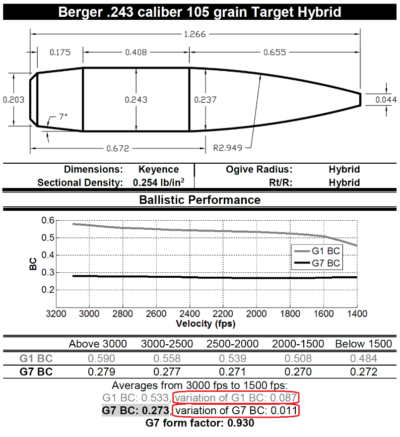

Figure 2. Variation in the G1 BC is 8 times the variation of the G7 BC.

Any bullet can have both a G1 and a G7 BC, it’s just a matter which one is more representative for all speeds. For example, a modern bullet that’s shaped more like the G7 standard will have a G7 BC that stays very constant as it flies from muzzle velocity of 3000 fps down to 1500 fps at long range. However, that same bullet will have a G1 BC that can change by 20% or more as it flies. This migration of BC makes it very difficult to predict the flight performance (drop and wind deflection) of the bullet at long range. The migrating BC also makes it hard to compare performance of different bullets.

Notice the shape of the .243 caliber 105 grain Target Hybrid bullet in Figure 2. It’s long nose and boat tail make it a better match to the G7 standard. As expected, the G7 BC of this bullet is much more constant over the velocity span (3000 fps to 1500 fps) than the G1 BC. Over this speed range, the G1 BC migrates/varies by 0.011, whereas the G1 BC migrates by 0.087!

G1 vs G7 Trajectory Table

Table 1. Trajectory prediction errors for G1 vs. G7 referenced BCs.

Check out Table 1 to see what that means in terms of trajectory prediction error. Using any of the valid G1 BC’s for this bullet, you can calculate anywhere from -296” to -266” of drop at 1000 yards. That’s a window of 30” (very bad accuracy)! However, since this bullet is a better match to the G7 standard model, there is less variation in its G7 referenced BC, and the result is much less error in predicted drop. Going from the highest to the lowest G7 BC values for this bullet, the prediction window is only 6” at 1000 yards, which is 1/5 the error that’s possible with the G1 model.
Selection of the proper model (G7 for modern long range bullets) is important to accurate trajectory prediction as demonstrated in the above example. It’s also important to make informed decisions based on manufacturer published information.

Consider a manufacturer who wants to sell a lot of bullets, and knows that high BC sells. They could advertise the G1 BC of 0.590 for the .243 cal 105 gr Hybrid bullet in the previous example. This number isn’t technically wrong, but it’s only valid at 3000 fps. As soon as the bullet starts to lose velocity, the BC goes down and all bets are off. Because G1 BC’s vary/migrate much more with velocity, they are easy to manipulate and mislead buyers with. G7 referenced BC’s are more consistent for all speeds, are more useful for predicting accurate trajectories, AND are harder to inflate for marketing purposes.

Berger Bullets takes BC’s very seriously. We don’t believe in inflating BC’s for marketing like some other manufacturers. It’s much more important that customers can accurately compare performance, select a bullet based on the truth of its performance, and then predict accurate trajectories so they can hit targets. Because of this commitment to the shooter, Berger Bullets uses live fire, doppler radar test data fired at long range to measure BC. Furthermore, we advertise the average BC from 3000 fps to 1500 fps. This is not the highest possible number we could use, but it is the most accurate number for comparing and predicting bullet performance.

In Summary

  • Ballistic Coefficient (BC) is a measure of external ballistic performance.
  • BC is used as an input to ballistics programs to predict drop and wind deflection
  • BC can be referenced to various standards: G1 for old flat based, blunt nosed bullets and G7 for modern long range bullets.
  • Referencing a bullets’ BC to a non-representative standard will result in high migration/variation in the BC as the bullet flies
  • Using G1 BC’s for modern long range bullets can be used as a trick by manufacturers to publish misleading performance data for marketing purposes.
